Hanwha Decan S1 Pick And Place Machine

The Hanwha DECAN S1 is a high-end fully automatic SMT pick-and-place machine. It offers high precision, fast speed, and stable operation, making it an excellent choice for improving PCB component placement efficiency and overall product quality.

This machine is equipped with 10 placement heads and a gantry structure, reaching a maximum placement speed of 47,000 components per hour. It features both a flying camera and a fixed camera for dual visual positioning, achieving placement accuracy of ±28μm for chips and ±35μm for IC components.

It supports PCB sizes ranging from 50×40mm up to 510×510mm, with an optional upgrade for large boards up to 1500×460mm. The machine can hold up to 120 feeders, making it suitable for a wide variety of production needs.

With compact dimensions of 1430×1740×1485mm and a weight of 1600kg, the DECAN S1 is built for efficient and flexible SMT production.

Key Technical Specifications

Placement Speed: Up to 47,000 CPH (optimum)

Placement Accuracy: ± 28μm for chips, ± 35μm for ICs

Standard PCB Size: 50 × 40 mm to 510 × 510 mm

Optional Large PCB Size: Up to 1500 × 460 mm

Component Range: From 03015 micro-chips up to 16mm components

Hanwha Decan S1 Pick And Place Machine

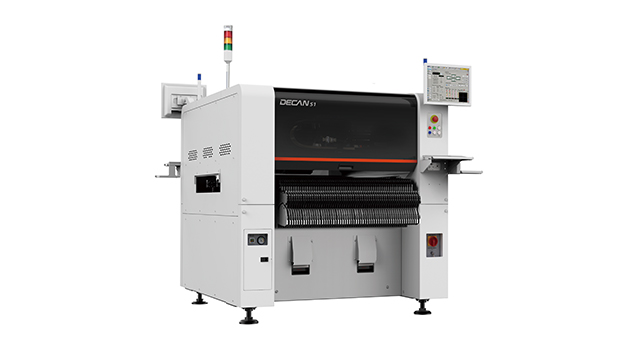

Hanwha Pick And Place Machine Decan S1
